WakaDDraw

WakaDDraw is a DirectDraw-inspired blitter plugin for wakaPAC. It provides a two-tier graphics API: a low-level blitter for direct surface-to-surface pixel transfer, and a higher-level scene system that manages sprites and dirty rectangle compositing automatically. Surfaces are the only concept — everything is represented as a surface, either onscreen or offscreen.

Getting Started

Include the script after wakaPAC and register the plugin:

<script src="https://cdn.jsdelivr.net/gh/quellabs/wakapac@main/wakapac.min.js"></script>
<script src="https://cdn.jsdelivr.net/gh/quellabs/wakapac@main/plugins/wakaddraw.min.js"></script>

<script>
    wakaPAC.use(wakaDDraw); // must be called before any wakaPAC() calls
</script>

Once registered, wakaDDraw is available globally.

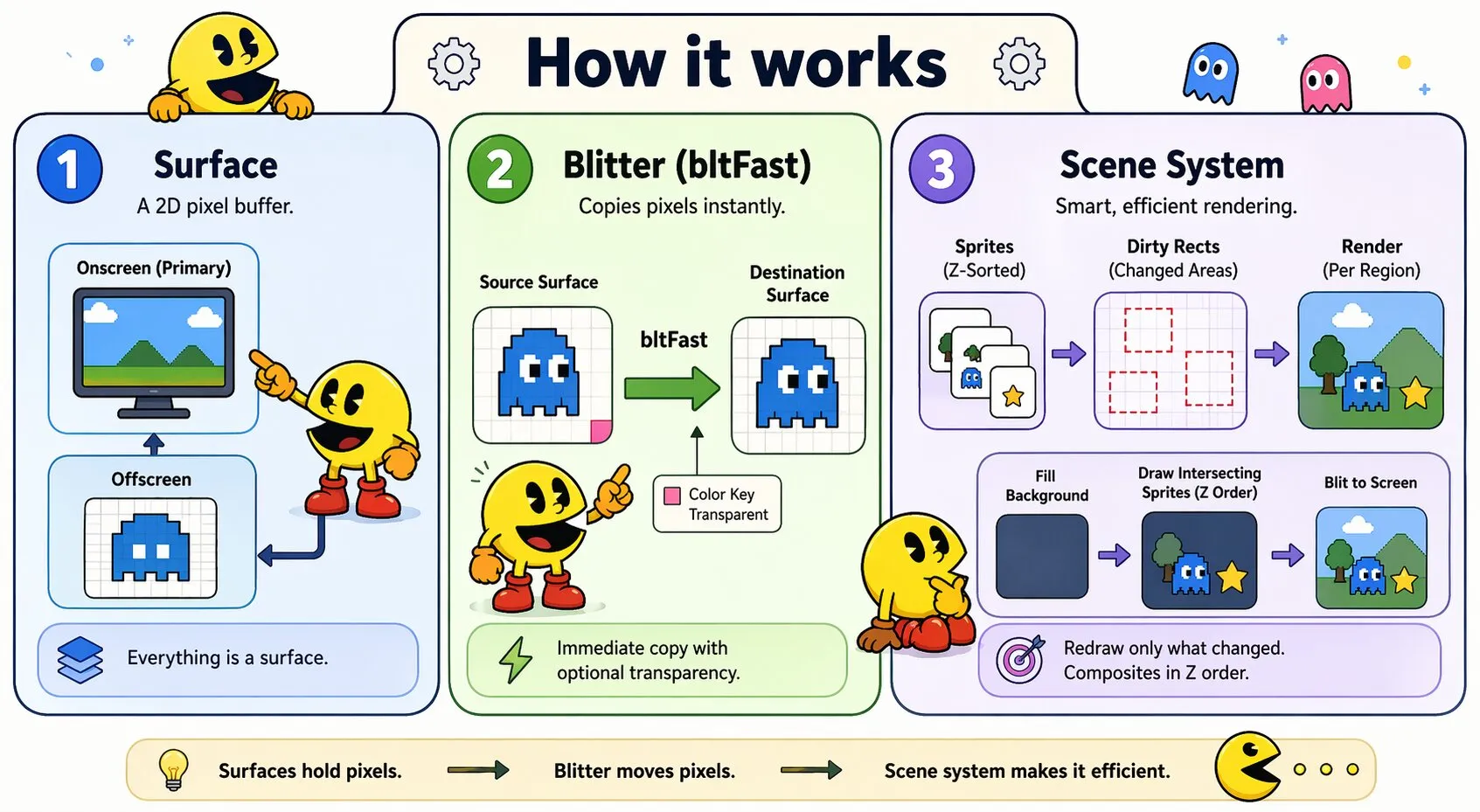

Concepts

A Surface is a 2D pixel buffer. The onscreen surface represents the visible render target of a wakaPAC component and is the render destination. Offscreen surfaces are pixel buffers drawn into and blitted from.

The blitter (bltFast) copies pixels from one surface to another immediately, with optional color key transparency. It has no state.

The scene system builds on the blitter. A scene manages a z-sorted list of sprites and a non-overlapping dirty rect list. On each sceneRender() call, only damaged regions are redrawn. Each dirty region is reconstructed from scratch: the background is filled, then all sprites intersecting that region are composited in z-order (bottom to top). The user drives the timing from their own timer.

The tilemap renders a tile-indexed map into an offscreen surface, which is then used as a sprite source in the scene. Scrolling is handled by the drawTo() call.

Basic Render Loop (Blitter)

wakaPAC('[data-pac-id="game"]', {
    init() {
        this.primary = wakaDDraw.getSurface(this.pacId);
        this.hero    = wakaDDraw.createSurface(32, 32);

        // Draw hero pixels into surface context
        const ctx = wakaDDraw.getContext(this.hero);
        ctx.fillStyle = '#4a9eff';
        ctx.fillRect(8, 8, 16, 16);
        wakaDDraw.applyColorKey(this.hero);

        this.x = 100;
        this._timer = wakaPAC.setTimer(this.pacId, 16);
    },

    msgProc(event) {
        switch (event.message) {
            case wakaPAC.MSG_TIMER: {
                // Clear to background color, then blt hero at current position
                wakaDDraw.clearSurface(this.primary, '#1a2a3a');
                wakaDDraw.bltFast(this.primary, this.x, 80, this.hero);
                this.x += 1;
                break;
            }
        }
    }
});

Scene System Render Loop

wakaPAC('[data-pac-id="game"]', {
    init() {
        this.primary     = wakaDDraw.getSurface(this.pacId);
        this.heroSurface = wakaDDraw.createSurface(32, 32);

        // Draw hero pixels...
        wakaDDraw.applyColorKey(this.heroSurface);

        this.scene = wakaDDraw.sceneCreate({ background: '#1a2a3a' });
        this.hero  = wakaDDraw.createSprite(this.heroSurface, null, 1);
        this.hero.moveTo(100, 80);

        wakaDDraw.sceneAddSprite(this.scene, this.hero);
        wakaDDraw.sceneInvalidate(this.scene, this.primary);

        this._timer = wakaPAC.setTimer(this.pacId, 16);
    },

    msgProc(event) {
        switch (event.message) {
            case wakaPAC.MSG_TIMER: {
                // Move sprite — dirty rects are marked automatically
                this.hero.moveTo(this.hero.x + 1, this.hero.y);
                wakaDDraw.sceneRender(this.scene, this.primary);
                break;
            }
        }
    }
});

Surfaces

All surfaces expose the following properties:

Color Keys

A color key designates a specific color as transparent. Pixels matching the key color (by RGB, ignoring alpha) are set to alpha=0 when applyColorKey() is called. By default, no color key is set (null) — surfaces use native alpha transparency from the source image. Color keying happens once at load or draw time — the key color is baked into the surface's alpha channel. At blit time, bltFast uses standard alpha compositing (source-over) with no per-pixel CPU work.

Pass { colorKey: '#ff00ff' } to opt into magenta-based color keying for legacy assets that use a solid color as fake transparency instead of a proper alpha channel.

Error Handling

WakaDDraw uses a two-tier error strategy:

• Low-level API (getSurface, createSurface, bltFast, bltBitmap, lock, unlock) — throws on misuse. These are programming errors that must be caught at development time.
• High-level API (scene*, createSprite) — returns or no-ops on bad input with a console.warn. Scene state can be complex and partial failures should not crash the render loop.

Flags

API

wakaDDraw.getSurface(pacId)

Returns an onscreen surface representing the render target of a wakaPAC component. This is the render destination for bltFast() and sceneRender(). Throws if the component's container is not a <canvas> element.

wakaDDraw.createSurface(width, height, opts?)

Creates a blank offscreen surface. Draw into it using wakaDDraw.getContext(surface), then call applyColorKey() to make the key color transparent. By default no color key is set — pass { colorKey: '#ff00ff' } to enable magenta keying for legacy assets.

wakaDDraw.getContext(surface)

Returns the 2D rendering context of an offscreen surface for direct drawing. Use this to draw programmatically into a surface before calling applyColorKey(). Throws if called on an onscreen surface — drawing directly into the primary bypasses the compositor.

wakaDDraw.bltBitmap(surface, bitmap)

Blits a wakaPAC bitmap onto a surface's pixel data. Applies the surface's color key after blitting if one is set. The caller is responsible for calling wakaPAC.deleteBitmap() when done with the bitmap.

const bitmap = await wakaPAC.loadBitmap('/img/hero.png');
wakaDDraw.bltBitmap(heroSurface, bitmap);
wakaPAC.deleteBitmap(bitmap);

wakaDDraw.loadSurface(url, opts?)

Loads a bitmap from a URL and returns a ready-to-use offscreen surface. Combines wakaPAC.loadBitmap(), createSurface(), bltBitmap(), and wakaPAC.deleteBitmap() into a single call. The surface dimensions match the loaded image exactly. Native alpha transparency is preserved by default. Pass { colorKey: '#ff00ff' } only for legacy assets that use a solid color as fake transparency instead of a proper alpha channel.

// PNG with native alpha — default, no opts needed
this.hero = await wakaDDraw.loadSurface('/images/hero.png');

// Legacy sprite using magenta as transparency — opt in explicitly
this.enemy = await wakaDDraw.loadSurface('/images/enemy.png', { colorKey: '#ff00ff' });

wakaDDraw.bltFast(dst, dx, dy, src, rect?, flags?)

Blits a source surface into a destination surface immediately. If rect is omitted, the entire source surface is blitted. rect follows DOMRect conventions — both x/y and left/top are accepted.

By default, if the source surface has a color key, DDBLTFAST_SRCCOLORKEY is used — transparent pixels are composited correctly. Pass DDBLTFAST_NOCOLORKEY to copy all pixels regardless of the color key.

wakaDDraw.lock(surface)

Locks a surface for direct pixel access. Returns an ImageData snapshot of the surface canvas. Mutate imageData.data directly, then call unlock() to write it back.

wakaDDraw.unlock(surface, imageData)

Writes ImageData back to the surface canvas. Call applyColorKey() afterward if the key color was drawn into the pixels.

wakaDDraw.applyColorKey(surface)

Applies the surface's color key to its pixel data in-place. Pixels matching the key color (by RGB) are set to alpha=0. No-op if colorKey is null.

This operation is O(pixels) — call it once after loading or bulk pixel operations, never per frame.

wakaDDraw.clearSurface(surface, color?)

Clears a surface to a solid color. Use this at the start of each frame when driving the render loop manually with bltFast. The scene system does not need this — it clears only dirty regions itself via its background color.

wakaDDraw.requestFullscreen(pacId)

Requests fullscreen for the primary surface of a wakaPAC component. Must be called from a user gesture (a click, keydown, or similar) — the browser will silently deny the request otherwise. Errors are reported via console.warn and not propagated to the caller. Handles the webkitRequestFullscreen prefix for Safari automatically.

wakaPAC dispatches MSG_SIZE with wParam === SIZE_FULLSCREEN once the transition completes. lParam carries the screen dimensions: wakaPAC.LOWORD(lParam) = width, wakaPAC.HIWORD(lParam) = height. On exit, MSG_SIZE fires again with wParam === SIZE_RESTORED and the original surface dimensions.

wakaPAC('[data-pac-id="game"]', {
    init() {
        this.primary = wakaDDraw.getSurface(this.pacId);
        this.scene   = wakaDDraw.sceneCreate({ background: '#000' });
        // ... add sprites, start timer ...
    },

    msgProc(event) {
        switch (event.message) {

            case wakaPAC.MSG_LCLICK:
                // Must be called from a user gesture
                wakaDDraw.requestFullscreen(this.pacId);
                break;

            case wakaPAC.MSG_SIZE: {
                const w = wakaPAC.LOWORD(event.lParam);
                const h = wakaPAC.HIWORD(event.lParam);

                if (event.wParam === wakaPAC.SIZE_FULLSCREEN) {
                    // Surface is now displayed at screen resolution (w x h)
                    // Pixel dimensions are unchanged - browser upscales via CSS
                } else if (event.wParam === wakaPAC.SIZE_RESTORED) {
                    // Returned to windowed mode, w x h are the original surface dimensions
                }
                break;
            }

            case wakaPAC.MSG_KEYDOWN:
                if (event.wParam === wakaPAC.VK_ESCAPE && wakaDDraw.isFullscreen) {
                    wakaDDraw.exitFullscreen();
                }
                break;
        }
    }
});

wakaDDraw.exitFullscreen()

Exits fullscreen mode. No-op if no element is currently fullscreen. Errors are reported via console.warn and not propagated to the caller. Handles the webkitExitFullscreen prefix for Safari automatically.

wakaDDraw.isFullscreen

Returns true if any element is currently fullscreen, false otherwise. Checks both the standard document.fullscreenElement and the Safari document.webkitFullscreenElement.

Scene System

The scene system is a higher-level compositor built on bltFast. It maintains a z-sorted sprite list and a non-overlapping dirty rect list. On each sceneRender() call, only the regions that changed are redrawn. For each dirty rect, the region is first cleared to the background color, then all sprites intersecting that region are blitted in z-order (painter's algorithm, bottom to top), reconstructing the final image for that region. Sprites that did not move cost nothing.

The dirty rect list is guaranteed non-overlapping through a rectangle subtraction algorithm. If the number of dirty rects exceeds 64, the system collapses to a full redraw for that frame, preventing O(n²) fragmentation.

Rendering is immediate-mode. Dirty regions are rebuilt each frame; previous framebuffer contents are not reused. The system does not perform occlusion culling — all sprites intersecting a dirty region are drawn regardless of coverage.

wakaDDraw.sceneCreate(opts?)

Creates a scene. The scene owns a sprite list and a dirty rect list. It does not own a surface — the primary surface is passed to sceneRender() each frame.

wakaDDraw.sceneDestroy(scene)

Destroys a scene. Detaches all sprites and clears state. Call from destroy().

wakaDDraw.sceneInvalidate(scene, primary)

Marks the entire scene dirty, forcing a full redraw on the next sceneRender() call. Call this after creating the scene and adding all initial sprites to ensure the first frame renders correctly. Also call after changing the background color.

wakaDDraw.sceneAddSprite(scene, sprite)

Adds a sprite to a scene. The sprite list is kept z-sorted on insertion. Marks the sprite's initial position dirty so it appears on the next sceneRender(). No-op if the sprite is already in this scene.

wakaDDraw.sceneRemoveSprite(scene, sprite)

Removes a sprite from its scene. Marks the vacated region dirty so the background is restored on the next sceneRender().

wakaDDraw.sceneRender(scene, primary)

Composites the scene into the primary surface. For each dirty rect: fills the background color into that region, then blits all visible sprites intersecting it in z-order. Clears the dirty list when done. No-op if there are no dirty rects.

Call once per frame from the user's timer or requestAnimationFrame.

wakaDDraw.createSprite(surface, rect?, z?)

Creates a sprite backed by an offscreen surface. The sprite is not in any scene until sceneAddSprite() is called. Mutations to the sprite's position, rect, z-order, or visibility automatically mark the affected region dirty on its parent scene.

Sprite Methods

All sprite mutations take effect immediately and mark the affected region dirty on the parent scene automatically. Mutations before sceneAddSprite() update internal state but produce no dirty rects.

Sprites also expose sprite.x, sprite.y, and sprite.visible as readable properties.

Tilemap

A tilemap is a pure renderer with no position or scroll state of its own. It renders a window of a tile-indexed world map into an offscreen surface on demand. Use that surface as a sprite source in the scene system to composite the tilemap with other sprites.

A tile sheet is an offscreen surface containing tile images arranged in a uniform grid. A tile map is a Uint16Array of tile indices (row-major) referencing positions on the sheet. The same tile index can appear many times in the map — this is how large worlds are built from a small set of tile images.

// Build a 64x64 tile world map
const mapData = new Uint16Array(64 * 64);
mapData.fill(0); // tile 0 = grass everywhere
mapData[14 * 64 + 20] = 2; // place stone tile at column 20, row 14

const tileSheet = wakaDDraw.createSurface(64, 16);
// Draw tiles into tileSheet._ctx at 16x16 per cell...

const map = wakaDDraw.createTilemap(tileSheet, 16, 16, mapData, 64, 64);

// Render visible window into an offscreen surface at scroll offset (scrollX, scrollY)
const tileSurface = wakaDDraw.createSurface(320, 240);
map.drawTo(tileSurface, scrollX, scrollY);

// Use tileSurface as a sprite in the scene
const tileSprite = wakaDDraw.createSprite(tileSurface, null, 0);
wakaDDraw.sceneAddSprite(scene, tileSprite);

Call drawTo() again whenever the scroll position changes — only changed frames need to be redrawn. Invalidate the scene after redrawing the tile surface so the compositor picks up the change.

wakaDDraw.createTilemap(tileSheet, tileW, tileH, mapData, mapWidth, mapHeight)

tilemap.drawTo(dst, scrollX, scrollY)

Renders the visible portion of the map into dst. Only tiles that fall within the destination surface bounds are drawn. Tiles beyond the map edges are not drawn (clamp). Partial tiles at scroll edges are handled correctly.

Notes

• Implementation note: A surface is backed by an HTML canvas element and its 2D context. Use wakaDDraw.getContext(surface) to access the context for direct drawing into offscreen surfaces.
• The scene system writes directly to the primary surface each frame. Do not use wakaPAC.invalidateRect() in conjunction with the scene system — sceneRender() is the sole rendering entry point.
• The blitter (bltFast) has no restrictions on source and destination — you can blt from the primary to an offscreen surface or between two offscreen surfaces. The scene system assumes sprites blt from offscreen surfaces into the primary.
• Color key transparency is baked into the surface's alpha channel once, via applyColorKey() or bltBitmap(). At blit time, bltFast uses standard alpha compositing with no per-pixel CPU loop. Do not call applyColorKey() per frame — it is O(pixels) and intended for one-time surface preparation. This is the inverse of how real DirectDraw worked: DirectDraw stored the key color on the surface and the hardware blitter compared each pixel against it live on every blt. That was free in dedicated blitter hardware; on Canvas 2D it would be an expensive CPU loop every frame. WakaDDraw instead pays the CPU cost once at load time and relies on GPU-accelerated alpha compositing for every blt thereafter.
• Sprite positions are always integers. moveTo() rounds its arguments. This prevents sub-pixel rendering artifacts on pixel-art content — ensure the underlying rendering surface uses image-rendering: pixelated in CSS.
• Fullscreen does not resize the primary surface — the browser scales it via CSS. The pixel dimensions reported in MSG_SIZE reflect the screen resolution of the fullscreen display, not the surface's backing buffer. If high-DPI rendering is required at native resolution, resize the canvas explicitly after receiving SIZE_FULLSCREEN using wakaPAC.resizeCanvas() and recreate any surfaces that cache the old dimensions.

Best Practices

• Register before creating components — call wakaPAC.use(wakaDDraw) before any wakaPAC() calls.
• Call sceneInvalidate() after setup — the scene starts with an empty dirty list. Without an initial invalidate, the first render produces a blank frame.
• Apply color keys once — call applyColorKey() or bltBitmap() once per surface after drawing, never per frame.
• Redraw tilemaps only on scroll change — drawTo() redraws the entire destination surface. Call it only when scrollX or scrollY changes, then invalidate the scene to pick up the updated pixels.
• Destroy scenes in destroy() — call wakaDDraw.sceneDestroy() to detach sprites and release state when the component is removed.
• Use { colorKey: '#ff00ff' } only for legacy assets — color keying is disabled by default. Only opt in for assets that use a solid color as fake transparency. Background surfaces and any PNG with native alpha need no opts at all.
• Call requestFullscreen() from a user gesture — the browser enforces this without exception. Wire it to MSG_LCLICK, MSG_KEYDOWN, or a similar user-initiated message. Calling it from init(), a timer, or any async path that has lost the gesture context will be silently rejected.
• Handle MSG_SIZE for both SIZE_FULLSCREEN and SIZE_RESTORED — wakaPAC fires MSG_SIZE on both transitions. If the component caches surface dimensions (e.g. for clipping, HUD layout, or coordinate mapping), update those caches in the MSG_SIZE handler rather than storing them only at init time.
